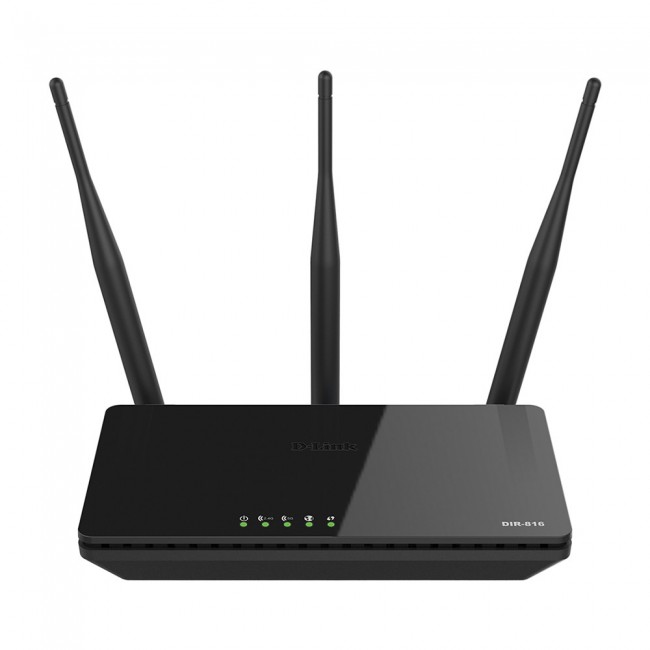

The DIR-816 device is a wireless dual band router with LTE support. It provides a fast and simple way to create a wireless and wired network at home or in an office.

Using this device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks.

Dual Band Wireless AC for Seamless Performance

The DIR-816 Wireless AC750 Dual Band Router gives you lightning-fast combined wireless speeds of up to 750 Mbps and increased range. Using dual-band wireless, it allows you to operate two concurrent, high-speed Wi-Fi bands for ultimate wireless performance. Surf the web, chat and play online games on the 2.4 GHz band, while simultaneously streaming digital media on the 5 GHz band. What’s more, each band can operate as a separate Wi-Fi network, giving you the ability to customize your network according to your connectivity needs. You can even configure a guest zone to give visitors Internet access without giving them access to the rest of your network.

Easy to Set Up, Easy to Secure

Sharing your Internet connection doesn’t have to be a complicated process; just open a web browser and complete the one-page setup wizard to get started. Implement WPA/WPA2 wireless security in minutes with the wireless network setup wizard, or use Wi-Fi Protected Setup (WPS), which establishes a secure connection to new devices without the need to enter settings or create passwords.

High-Speed Wired and Wireless Connectivity

The DIR-816 Wireless AC750 Dual Band Router uses the latest high-speed wired and wireless technology to bring you lightning-fast Internet. With 10/100 Fast Ethernet ports, you get solid, dependable wired performance for devices such as media centers and gaming consoles. In addition, the built-in Quality of Service (QoS) engine allows you to prioritize important traffic to ensure that your favorite applications are receiving optimal bandwidth.



Special Capabilities:

mydlink SharePort

- Use the mydlink SharePort mobile app to access files stored on a connected USB drive over the Internet

- Stream music and video to your smartphone or tablet

- Upload photos and videos from your smartphone or tablet

mydlink SharePort Features

- Remote Access Mode: Access files through the Internet

- Local Access Mode: Access files from any device connected to the DIR-816L

- SharePort Web File Access support (web browser)

- Access files from any device connected to the DIR-816L

- Accepts USB storage drives up to 250 GB

Mobile Apps

- mydlink Lite helps you access, manage, and view your network remotely across the Internet

- QRS Mobile sets up your network using a mobile device without the need for a computer

mydlink Lite App Features

- Remote Management

- View current upload/download bandwidth

- View currently connected clients

- View web browsing history per client

- Block/unblock client network access

- Manage wireless network details

- Accessible through a web browser or iOS or Android mobile app



Specifications:

Device Interfaces

- IEEE 802.11ac wireless LAN1

- IEEE 802.11 a/b/g/n wireless LAN

- 10/100 Fast Ethernet WAN port

- Four 10/100 Fast Ethernet LAN ports

LEDs

- Power

- Internet

- WLAN

- LAN (for each port)

- WPS

Antenna Type

- Two external antennas

Operating Frequency

- 2.4 GHz band: 2400 - 2483.5 MHz

- 5 GHz band: 5150 - 5725 MHz

Standards

- IEEE 802.11ac (draft)

- IEEE 802.11n

- IEEE 802.11g

- IEEE 802.11b

- IEEE 802.11a

- IEEE 802.3u

Minimum Requirements

- Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higher

- Internet Explorer 7, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browsers

- Ethernet interface or Wi-Fi

- Cable or DSL Modem

- Subscription with an Internet Service Provider

Functionality

Security

- WPA & WPA2 (Wi-Fi Protected Access)

- WPS (Wi-Fi Protected Setup)

Advanced Features

- Web setup wizard

- QoS (Quality of Service)

- DMZ (Demilitarized Zone)

- Firewall - Network Address Translation (NAT)

- Guest zone

- IPv6 ready

Mobile App Support

- mydlink Lite

- mydlink SharePort

- QRS Mobile

- Apps support iPhone, iPad, iPod Touch, and Android devices

Physical

- Dimensions: 151.6 x 112 x 30.5 mm (5.97 x 4.41 x 1.2 inches)

- Weight: 204 grams (7.2 ounces)
